SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols
*
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE
802.1p
Interface
* 5 10/100/1000Mbps RJ45 Ports
* AUTO
Negotiation/AUTO MDI/MDIX
Network Media
* 10BASE-T: UTP
category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum
100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
*
EIA/TIA-568 100? STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6
or above cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
Dimensions
(W X D X H)
* 100 * 98 *25 mm
Fan Quantity
*
Fanless
Power Supply
* 100-240VAC, 50/60Hz
*
PERFORMANCE
MAC Address Table
* 8K
Packet
Buffer Memory
* 2Mb
Packet Forwarding Rate
*
7.4Mpps
Jumbo Frame
* 16KB
SOFTWARE FEATURES
Quality
of Service
* Support Port Based/802.1p Based priority
* Support 4
priority queues
* Rate Limit
* Storm Control
L2 Features
*
IGMP Snooping
* Link Aggregation
* Port Mirroring
* Cable
Diagnostics
* Loop Prevention
VLAN
* Supports up to 32
VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
Transmission
Method
* Store-And-Forward
OTHERS
Certification
*
FCC, CE, RoHS
Obsah balení

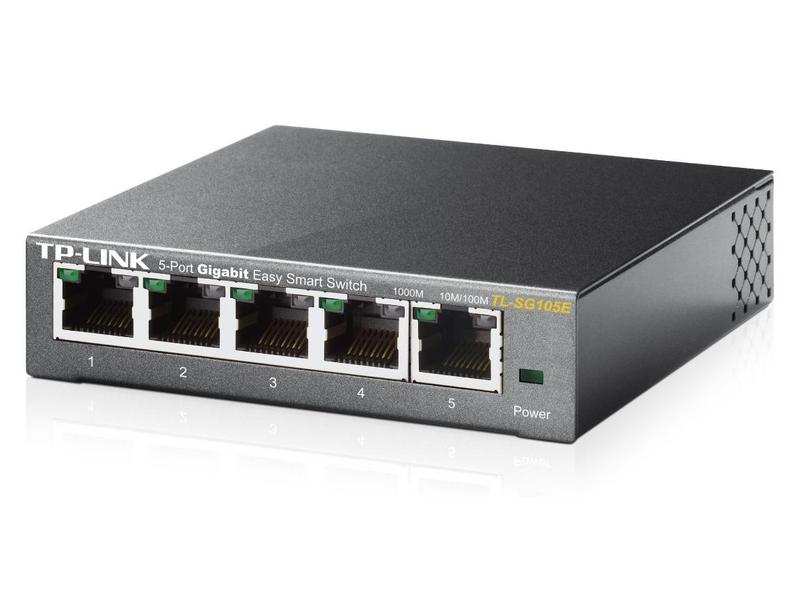

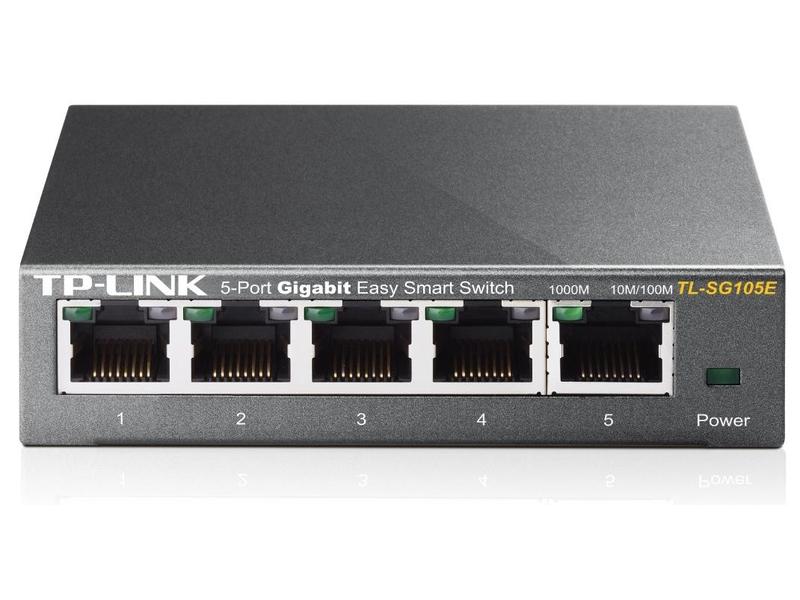

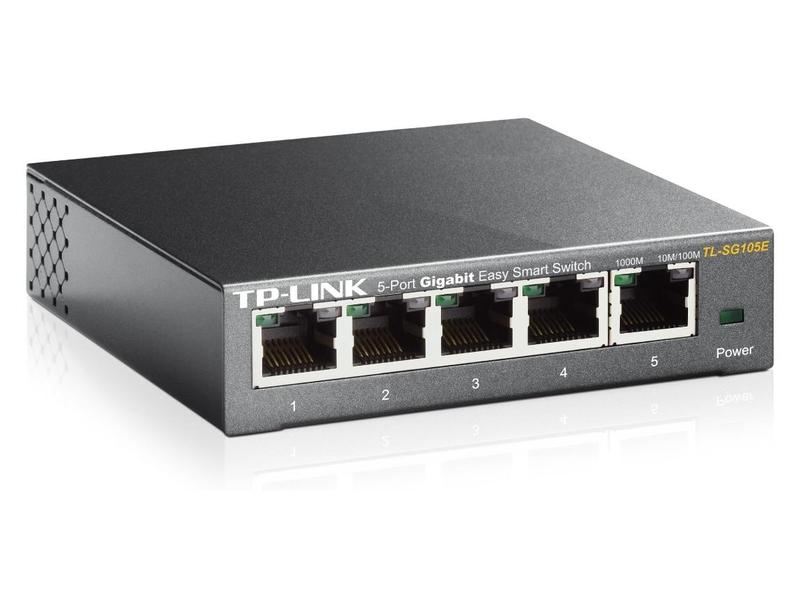

* TL-SG105E
* Power
Cord
* Installation Guide
* Resource CD
* Rubber Feet
