D-Link GO-SW-8G 8-Port Gigabit Easy Desktop Switch
OVERVIEW
The
8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for
SOHO and small to medium businesses (SMB) to benefit from the increased

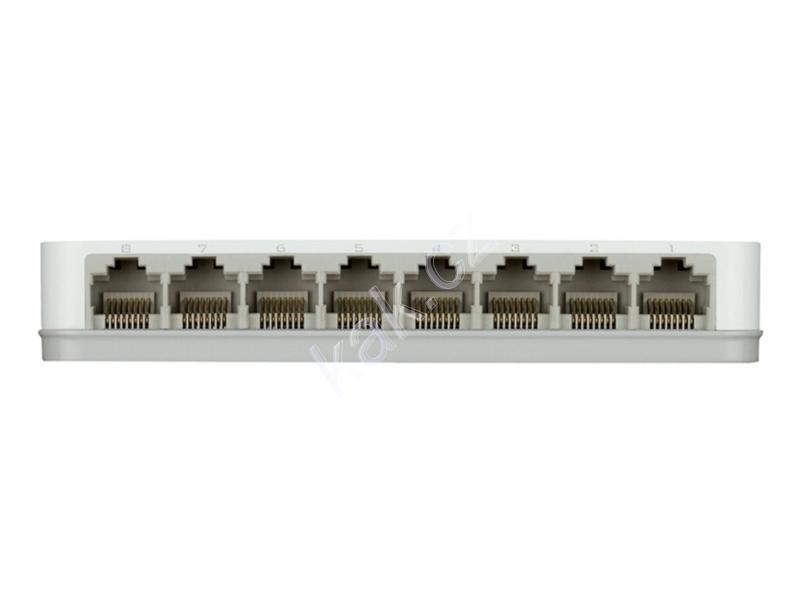

bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy
expansion of your network and a quick way to upgrade your network to
Gigabit connectivity.SPECIFICATIONS
Switching Fabric
• 16Gbps
Standards
•
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u
100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab
1000BASE-T Gigabit Ethernet (twistedpair copper)
• ANSI/IEEE 802.3 NWay
auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az
Energy-Efficient Ethernet (EEE)
Protocol
• CSMA/CD
Data
Transfer Rates
• Ethernet:
• 10 Mbps (half duplex), 20 Mbps
(full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex), 200
Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full
duplex)
Topology
• Star
Network Cables
•
10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max.)
• EIA/TIA-586
100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
• UTP CAT
5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)
Media
Interface Exchange
• Auto MDI/MDIX adjustment for all ports
LED
Indicators
• Per port: Link/Activity/Speed
• Per device: Power
Transmission
Method
• Store-and-forward
MAC Address Table
• 8K
MAC
Address Learning
• Automatic update
Packet
Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
•
Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps
per port
RAM Buffer
• 128KB per device
Jumbo Frames
•
9,216 Bytes
DC Input

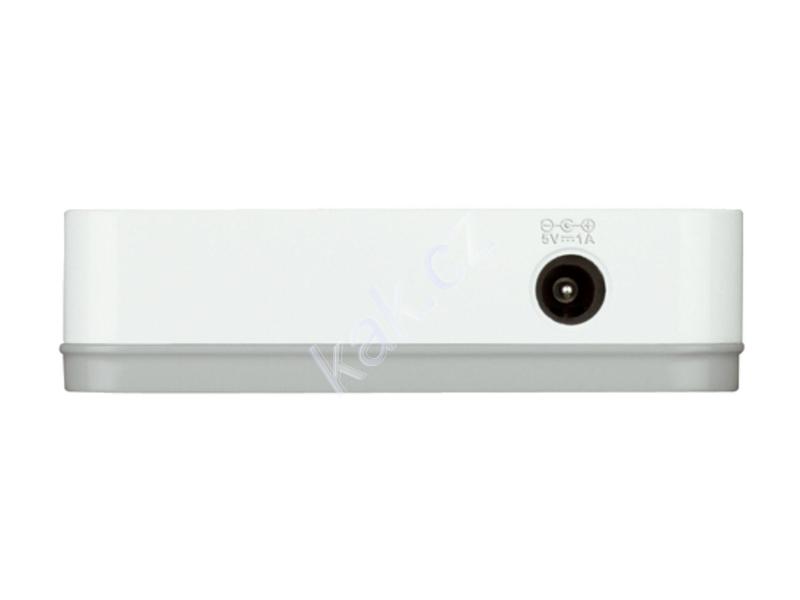

• External 5 V/1 A Level "V" Power Adapter
Power
Consumption
• DC input: 3.06 watts
• AC input: 3.9 watts
MTBF
•
412,433 hours
Operating Temperature
• 0 to 40 °C
Storage
Temperature
• -10 to 70 °C
Operating Humidity
•
10% to 90% RH non-condensing
Storage Humidity
• 5% to 90% RH
non-condensing
Dimensions
• 128 x 68.5 x 25.4 mm
Weight
•
195 grams
Certifications
• FCC Class B
• ICES-003 Class
B
• CE Class B
• C-Tick Class B
• VCCI Class B
•
cUL/UL
• CCC
• Anatel
• LVD
