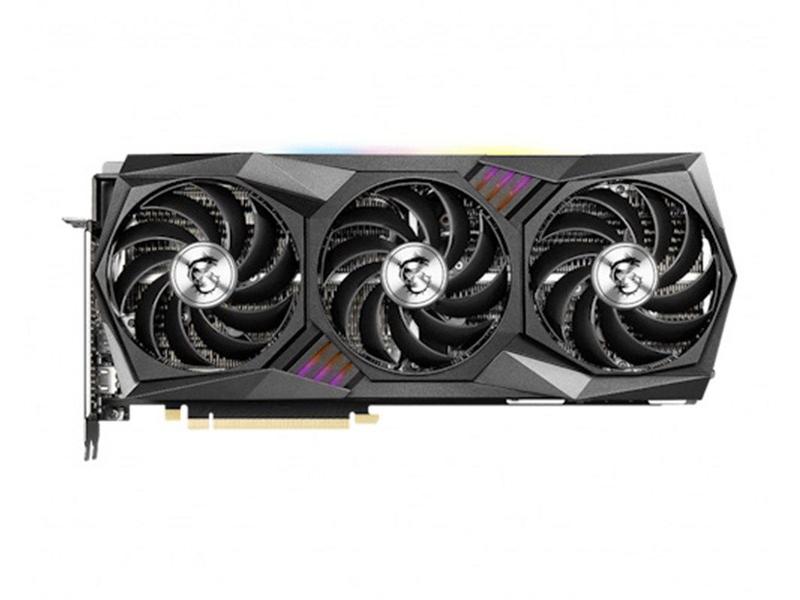

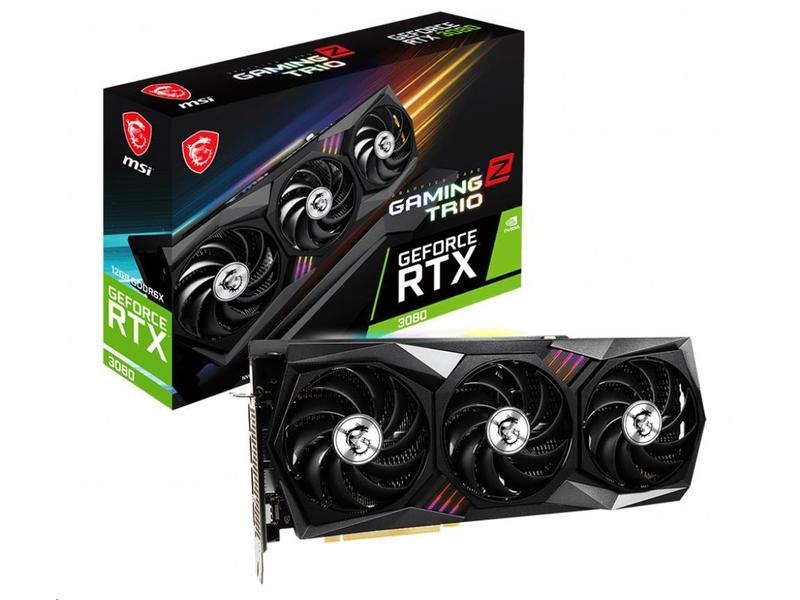

GeForce RTX 3080 GAMING Z TRIO 12G LHR
The GeForce RTX™ 3080 delivers the ultra performance that gamers crave,
powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with
enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and
superfast G6X memory for an amazing gaming experience.
Boost Clock / Memory Speed
-
1815 MHz / 19 Gbps
-
12 GB GDDR6X
-
DisplayPort x 3 (v1.4a)
-
HDMI x 1 (Supports 4K@120Hz as specified
in HDMI 2.1)
TRI FROZR 2 Thermal Design
-
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to
create unprecedented levels of focused air pressure.
-
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU
and spread heat along the full length of the heatsink.
-
Airflow Control: Don"t sweat it, Airflow Control guides the air to
exactly where it needs to be for maximum cooling.
RGB Mystic Light
-
Mystic Light gives you complete control of the RGB lighting for MSI
devices and compatible RGB products.
MSI Center
-
MSI"s exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
-
LHR 52 MH/s ETH hash rate (est.)
MODEL NAME
GeForce RTX™ 3080 GAMING Z TRIO 12G LHR
GRAPHICS PROCESSING UNIT
NVIDIA GeForce RTX™ 3080
INTERFACE
PCI Express Gen 4
CORES
8960 Units
CORE CLOCKS
Boost: 1815 MHz
MEMORY SPEED
19 Gbps
MEMORY
12GB GDDR6X
MEMORY BUS
384-bit
OUTPUT
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz
as specified in HDMI 2.1)
HDCP SUPPORT
Y
POWER CONSUMPTION
390W
POWER CONNECTORS
8-pin x 3
RECOMMENDED PSU
750W
CARD DIMENSION (MM)
323 x 140 x 56mm
WEIGHT (CARD / PACKAGE)
1566g/2351g
DIRECTX VERSION SUPPORT
12 API
OPENGL VERSION SUPPORT
4.6
MAXIMUM DISPLAYS
4
VR READY
Y
G-SYNC TECHNOLOGY
Y
ADAPTIVE VERTICAL SYNC
Y
DIGITAL MAXIMUM RESOLUTION
7680x4320
