Radeon RX 6600 XT MECH 2X 8G OCV1
Gear up for incredible 1080p gaming performance. The MSI Radeon™ RX 6600
XT graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture.
Engineered to deliver an incredible 1080p gaming experience, the AMD
Radeon™ RX 6600 XT powers the next generation of gaming with vivid
visuals and elevated experiences.
Boost Clock / Memory Speed
-
Up to 2602 MHz / 16 Gbps
-
8GB GDDR6
-
DisplayPort x 3 (v1.4)
-
HDMI x 1 (Supports 4K@120Hz/8K@60Hz
and VRR as specified in HDMI 2.1)

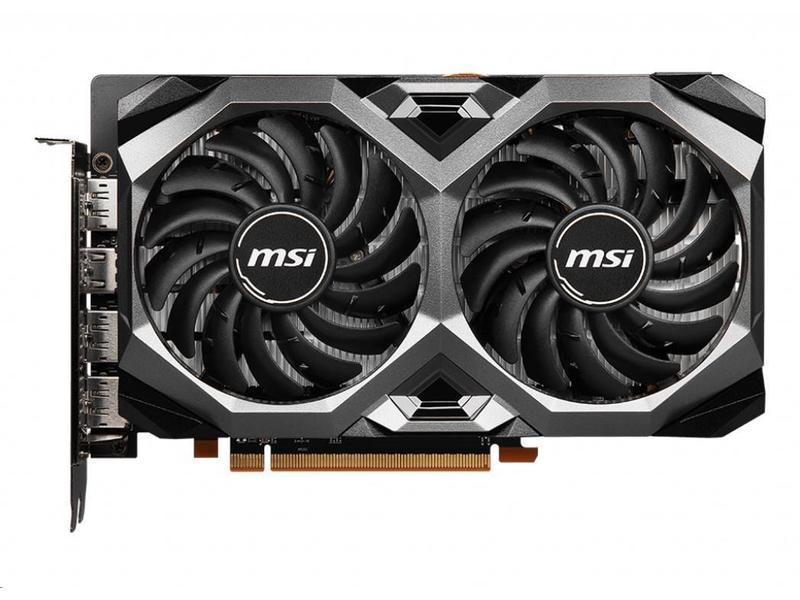

Dual Fan Thermal Design
-
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high
static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
-
Supports multi-GPU setups.
-
OC Scanner: An automated function finds the highest stable overclock
settings.
-
On Screen Display: Provides real-time information of your system"s
performance.
-
Predator: In-game video recording.
MSI Center
-
The exclusive MSI Center software lets you monitor, tweak and optimize
MSI products in real-time.
MODEL NAME
Radeon™ RX 6600 XT MECH 2X 8G OCV1
GRAPHICS PROCESSING UNIT
AMD Radeon™ RX 6600 XT
INTERFACE
PCI Express 4.0 x8
CORES
2048 Units
CORE CLOCKS
Boost: Up to 2602 MHz / Game: Up to 2413 MHz
MEMORY SPEED
16 Gbps
MEMORY
8GB GDDR6
MEMORY BUS
128-bit

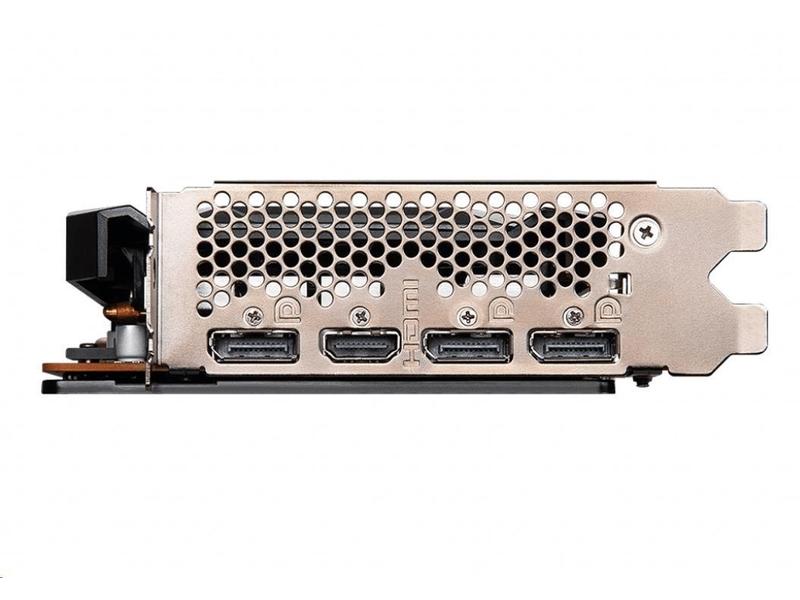

OUTPUT
DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120Hz/8K@60Hz
and VRR as specified in HDMI 2.1)
HDCP SUPPORT
Y
POWER CONSUMPTION
160 W
POWER CONNECTORS
8-pin x 1
RECOMMENDED PSU
500 W or greater
CARD DIMENSION (MM)
215 x 128 x 42 mm
WEIGHT (CARD / PACKAGE)
728g / 1077g
DIRECTX VERSION SUPPORT
12 Ultimate
OPENGL VERSION SUPPORT
4.6
MULTI-GPU TECHNOLOGY
Y
AFTERBURNER OC
Y
MAXIMUM DISPLAYS
4
VR READY
Y
DIGITAL MAXIMUM RESOLUTION
7680 x 4320
