AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC
Clock: GPU / Memory
-
Boost Clock: Up to 2820 MHz / 18 Gbps
-
Game Clock: Up to 2650 MHz / 18 Gbps
-
Base Clock: 2365 MHz / 18 Gbps
Key Specification
-
6nm AMD Radeon™ RX 6500 XT
-
4GB GDDR6
-
AMD RDNA™ 2 Architecture
-
DirectX 12 Ultimate
-
PCI Express 4.0 Support
-
1 x 8-pin Power Connector
-
1 x DisplayPort™ 1.4 with DSC
-
1 x HDMI™ 2.1 VRR
Key Features
-

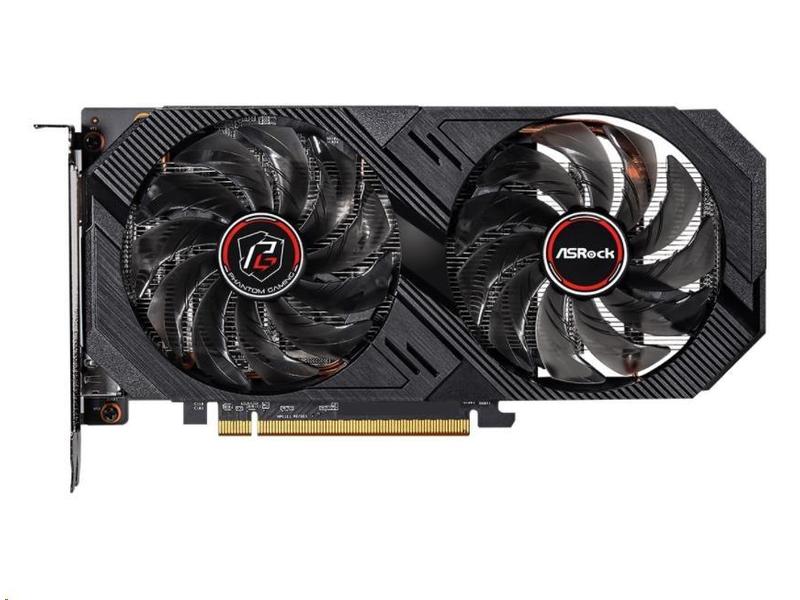

Dual Fan Design
-

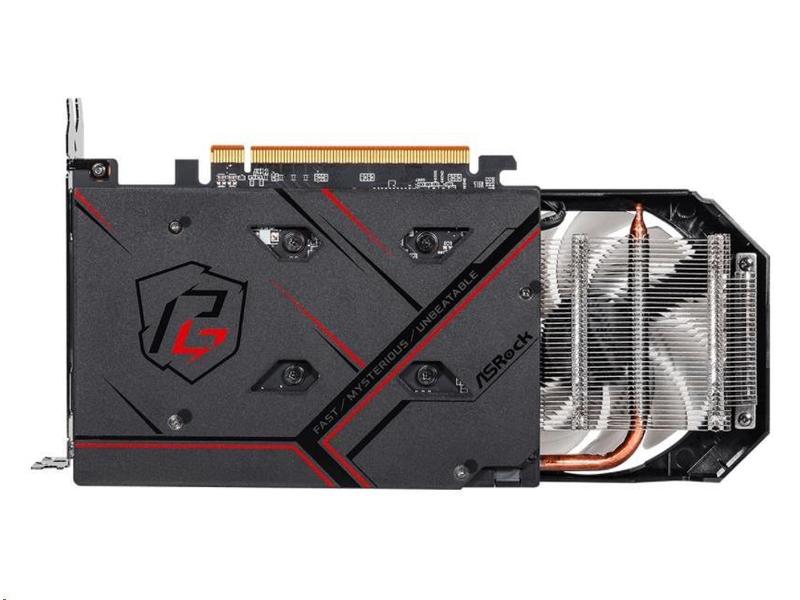

Stylish Metal Backplate
-
Striped Axial Fan
-
0dB Silent Cooling
-
Super Alloy Graphics Card
-
ASRock Tweak 2.0
-
AMD FidelityFX™ Super Resolution
-
Hardware Raytracing
Graphics Engine
- AMD Radeon™ RX 6500 XT
Bus Standard
- PCI Express 4.0 x4
DirectX
- 12 Ultimate
OpenGL
- 4.6
Memory
- 4GB GDDR6
Engine Clock
- Boost Clock: Up to 2820 MHz
- Game Clock: Up to 2650 MHz
- Base
Clock: 2365 MHz
Stream Processors
- 1024
Memory Clock
- 18 Gbps
Memory Interface
- 64-bit
Resolution
- Digital Max Resolution: 7680 x 4320
Interface
- 1 x HDMI™ 2.1
- 1 x DisplayPort™ 1.4a HBR3
HDCP
- Yes
Multi-view
- 2
Recommended PSU
- 400W
Power Connector
- 1 x 8-pin
Accessories
- 1 x Quick Installation Guide
Dimensions
- 240 x 129 x 42 mm
Net Weight
- 459 g
