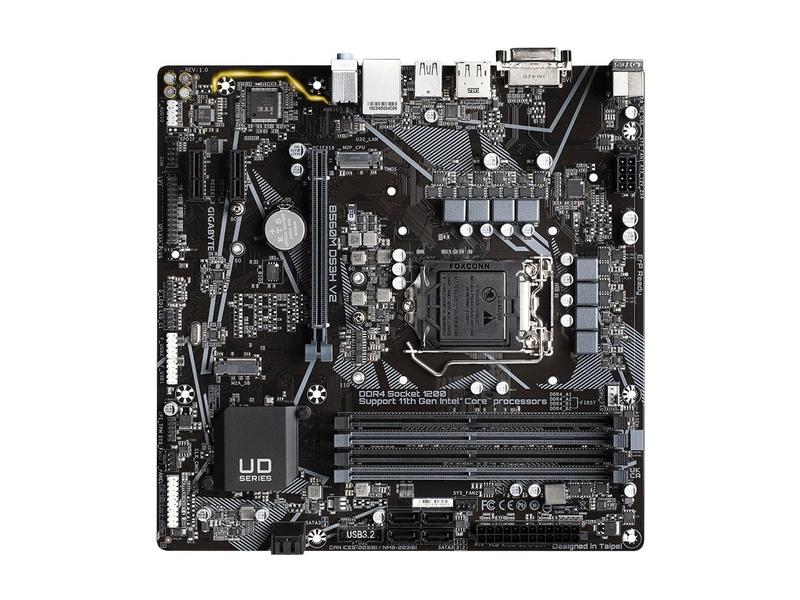

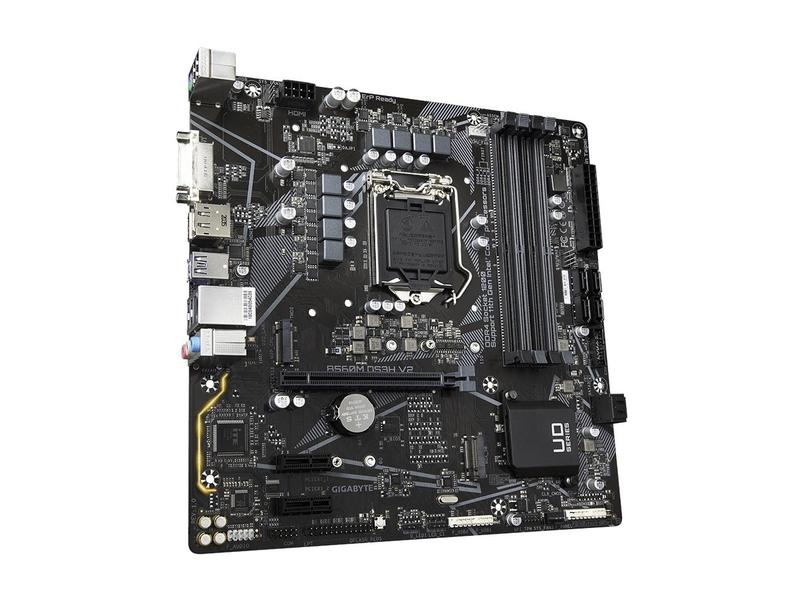

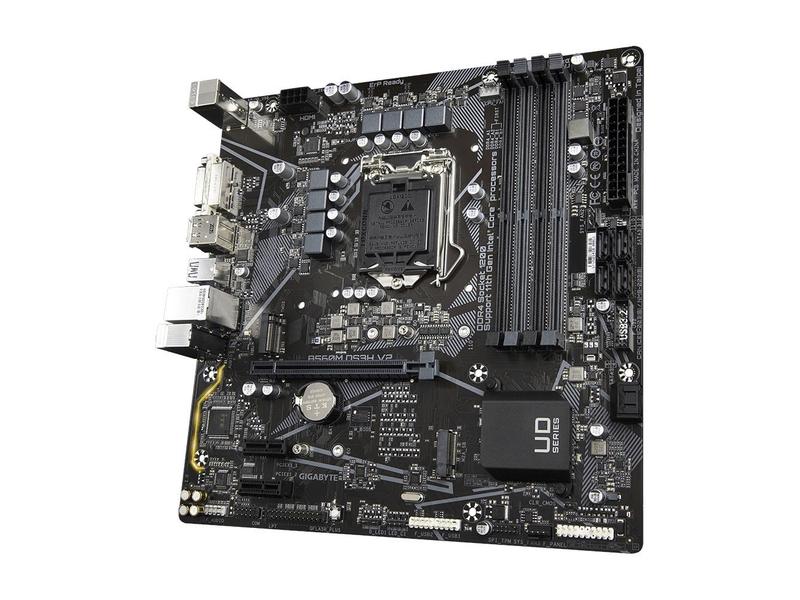

Chipset: Intel B560 Express Chipset
Rozměrový formát: Micro ATX Form Factor (24.4cm
x 24.4cm)
Podpora pro procesory:
-
11th Generation Intel Core i9 processors / Intel Core i7 processors
/ Intel Core i5 processors
-
10th Generation Intel Core i9 processors / Intel Core i7 processors
/ Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium
processors / Intel Celeron processors
-
L3 cache varies with CPU
Patice procesoru: LGA1200
Pozice na paměti: 4 x DDR4 DIMM sockets
Podpora pro
paměti:
11th Generation Intel Core i9/i7/i5 processors:
-
Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) /
4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) /
4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 /
2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/i7 processors:
-
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
-
Support for DDR4 2666/2400/2133 MHz memory modules
Max.velikost operační paměti: 128 GB
Podpora
pro paměti typu:
-
Dual channel memory architecture
-
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate
in non-ECC mode)
-
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-
Support for Extreme Memory Profile (XMP) memory modules
Grafická karta:
-
Integrated Graphics Processor-Intel HD Graphics
Zvuková karta:
Síťová karta:
-
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Rozšiřující sloty:
-
1 x PCI Express x16 slot, running at x16
-
2 x PCI Express x1 slots
RAID řadič: ne
SATA:
-
6 x SATA 6Gb/s connectors
M.2:
-
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0
x4/x2 SSD support) (M2P_CPU)
-
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0
x4/ x2 SSD support) (M2A_SB)
USB:
-
zadní USB porty ( celkem 6 )
-
1 x USB Type-C port with USB 3.2 Gen 1 support
-
3 x USB 3.2 Gen 1 ports
-
2 x USB 2.0/1.1 ports
-
přední USB porty ( celkem 6 )
-
2 x USB 3.2 Gen 1 ports
-
4 x USB 2.0/1.1 ports
Interní porty:
-
1 x 24-pin ATX main power connector
-
1 x 8-pin ATX 12V power connector
-
1 x CPU fan header
-
3 x system fan headers
-
1 x addressable LED strip header
-
1 x RGB LED strip header
-
6 x SATA 6Gb/s connectors
-
2 x M.2 Socket 3 connectors
-
1 x front panel header
-
1 x front panel audio header
-
1 x USB 3.2 Gen 1 header
-
2 x USB 2.0/1.1 headers
-
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0
SPI 2.0 module only)
-
1 x serial port header
-
1 x parallel port header
-
1 x Clear CMOS jumper
-
1 x Q-Flash Plus button

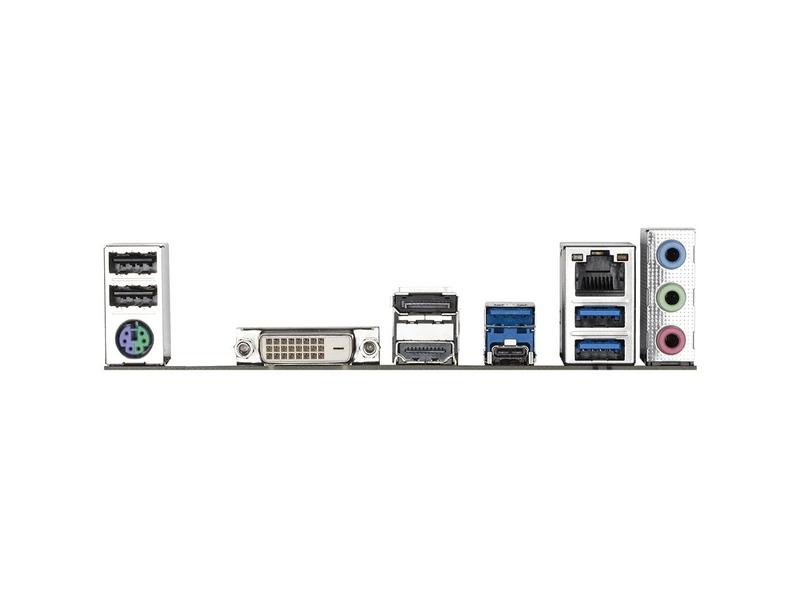

Externí porty:
-
2 x USB 2.0/1.1 ports
-
1 x PS/2 keyboard/mouse port
-
1 x DVI-D port
-
1 x DisplayPort
-
1 x HDMI port
-
3 x USB 3.2 Gen 1 ports
-
1 x USB Type-C port, with USB 3.2 Gen 1 support
-
1 x RJ-45 port
-
3 x audio jacks
BIOS:
-
1 x 256 Mbit flash
-
Use of licensed AMI UEFI BIOS
-
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Stránka výrobce: https://www.gigabyte.com/Motherboard/B560M-DS3H-V2-rev-10/sp#sp
