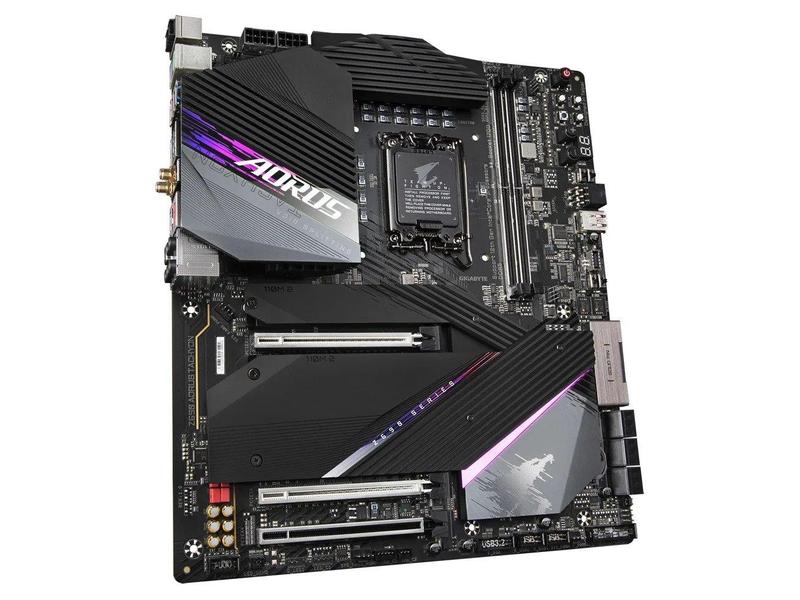

Chipset: Intel Z690 Express Chipset
Rozměrový formát: E-ATX Form Factor; (30.5cm x
27.0cm)
Podpora pro procesory: 12th Generation Intel Core i9
processors/Intel Core i7 processors/Intel Core i5 processors
Patice
procesoru: LGA 1700
Pozice na paměti: 2 x DDR5 DIMM, Dual channel memory
architecture
Podpora pro paměti: DDR5 7000(O.C.) /
6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) /
5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Max.velikost
operační paměti: 64 GB
Podpora pro paměti
typu: ECC, XMP
Grafická karta: Intel HD Graphics
-
1 x HDMI port - 4096x2160@60 Hz
Zvuková karta: Realtek ALC1220-VB CODEC
-
2/4/5.1/7.1-channel
-
Podpora S/PDIF Out
Síťová karta:
-
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax
-
Bluetooth 5.2
Rozšiřující sloty:
-
1 x PCI Express x16 slot, running at x16 (PCI Express 5.0 standard)
-
1 x PCI Express x16 slot, running at x8 (PCI Express 5.0 standard)
-
1 x PCI Express x16 slot, running at x4 (PCI Express 3.0 standard)
RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10
SATA: 6 x SATA 6Gb/s connectors
M.2: 4 x M.2 Socket 3 connectors
USB:
-
Interní:
-
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
-
1 x USB 3.2 Gen 2 Type-A port (red)
-
1 x USB 3.2 Gen 1 header
-
2 x USB 2.0/1.1 headers
-
Externí:
-
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
-
3 x USB 3.2 Gen 2 Type-A ports (red)
-
4 x USB 3.2 Gen 1 ports
Interní porty:
-
1 x 24-pin ATX main power connector
-
2 x 8-pin ATX 12V power connectors
-
1 x 6-pin OC_PEG power connector
-
1 x CPU fan header
-
1 x water cooling CPU fan header
-
4 x system fan headers
-
2 x system fan/water cooling pump headers
-
2 x addressable LED strip headers
-
2 x RGB LED strip headers
-
4 x M.2 Socket 3 connectors
-
6 x SATA 6Gb/s connectors
-
1 x front panel header
-
1 x front panel audio header
-
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
-
1 x USB 3.2 Gen 2 Type-A port (red)
-
1 x USB 3.2 Gen 1 header
-
2 x USB 2.0/1.1 headers
-
1 x noise detection header
-
2 x Thunderbolt add-in card connectors
-
2 x temperature sensor headers
-
Voltage Measurement Points
-
1 x Clear CMOS jumper
-
1 x power button (PW_SW)
-
1 x reset button (RST_SW)
-
1 x Clear CMOS button (CMOS_SW)
-
1 x Cold Reset button (RTY_SW)
-
1 x Protection Mode button (LIMP_MODE)
-
2 x BIOS switches (BIOS_SW/SB)
-
1 x CPU Ratio up button (RATIO_UP)
-
1 x CPU Ratio down button (RATIO_DW)
-
1 x OC Trigger switch (TGR)
-
1 x Reserved switch (RSV_SW)
Externí porty:
-
1 x Q-Flash Plus button
-
1 x OC Ignition button
-
1 x PS/2 keyboard port
-
1 x PS/2 mouse port
-

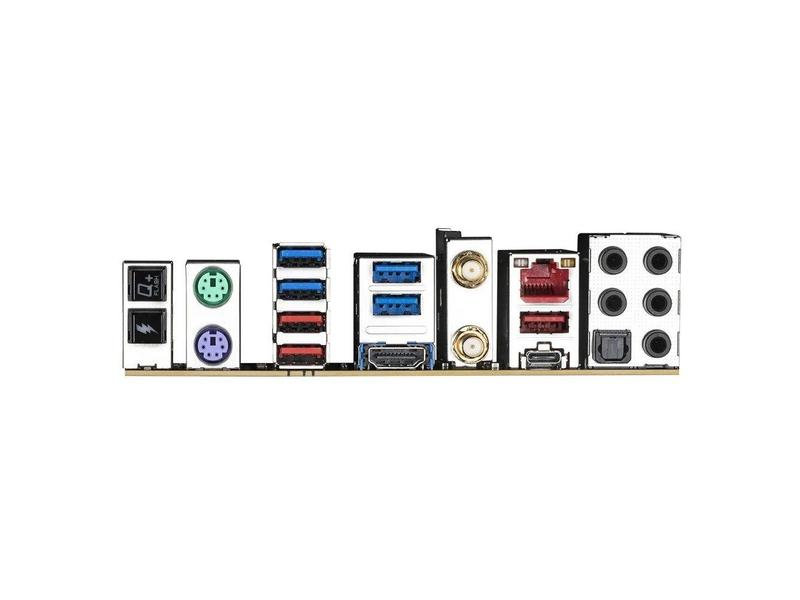

2 x SMA antenna connectors (2T2R)
-
1 x HDMI port
-
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
-
3 x USB 3.2 Gen 2 Type-A ports (red)
-
4 x USB 3.2 Gen 1 ports
-
1 x RJ-45 port
-
1 x optical S/PDIF Out connector
-
5 x audio jacks
BIOS: AMI UEFI BIOS, 2 x 256 Mbit flash
Stránka výrobce: http://www.gigabyte.com/Motherboard/Z690-AORUS-TACHYON-rev-10#kf
