Základní deska GIGABYTE Z690 AORUS XTREME WB (rev. 1.0)

Chipset: Intel Z690 Express Chipset

Rozměrový formát: E-ATX Form Factor (30.5cm x 28.5cm)
Podpora pro procesory: 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
Patice procesoru: LGA 1700

Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC, XMP

Grafická karta: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports)

Zvuková karta: ESS ES9280AC DAC chip + 2 ESS ES9080 chips

• 2-channel
• Podpora S/PDIF Out

Síťová karta:

• Marvell AQtion AQC113C 10GbE LAN chip
• Intel 2.5GbE LAN chip
• Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax
• Bluetooth 5.2

Rozšiřující sloty:

• 1 x PCI Express x16 slot, running at x16 (PCI Express 5.0 standard)
• 1 x PCI Express x16 slot, running at x8 (PCI Express 5.0 standard)
• 1 x PCI Express x16 slot, running at x4 (PCI Express 3.0 standard)

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 4 x SATA 6Gb/s connectors

M.2: 4 x M.2 Socket 3 connectors

USB:

• Interní:
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 1 x USB 2.0/1.1 header
• Externí:
• 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
• 10 x USB 3.2 Gen 2 Type-A ports (red)

Interní porty:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 1 x water cooling kit CPU LED header (LED_CPU)
• 1 x AORUS RGB Memory Armor power header (LED_DDR)
• 4 x system fan headers
• 4 x system fan/water cooling pump headers
• 1 x noise detection header
• 2 x integrated extension cable headers for addressable and RGB LED strips
• 4 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 1 x USB 2.0/1.1 header
• 2 x temperature sensor headers
• 1 x power button
• 1 x reset button

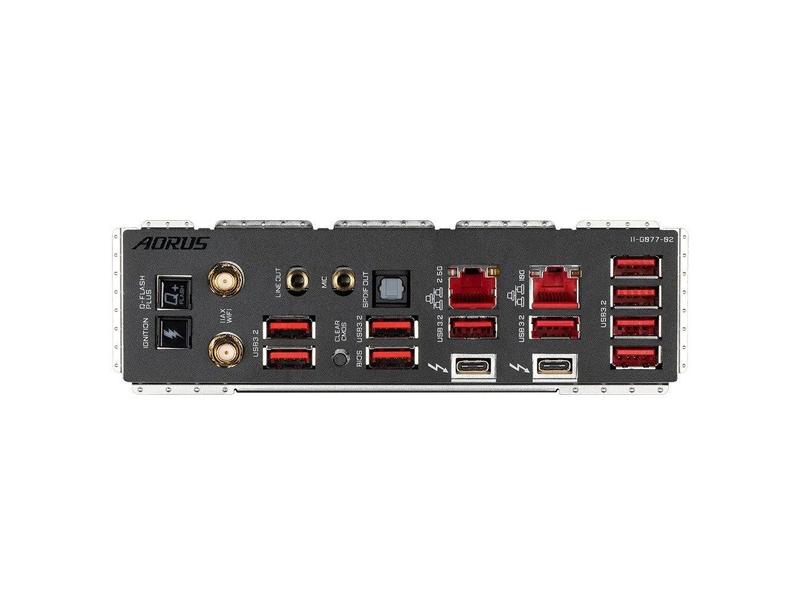

Externí porty:

• 1 x Q-Flash Plus button
• 1 x OC Ignition button
• 1 x Clear CMOS button
• 2 x SMA antenna connectors (2T2R)
• 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
• 10 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x RJ-45 ports
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

BIOS: AMI UEFI BIOS, 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/Z690-AORUS-XTREME-WATERFORCE-rev-10#kf
