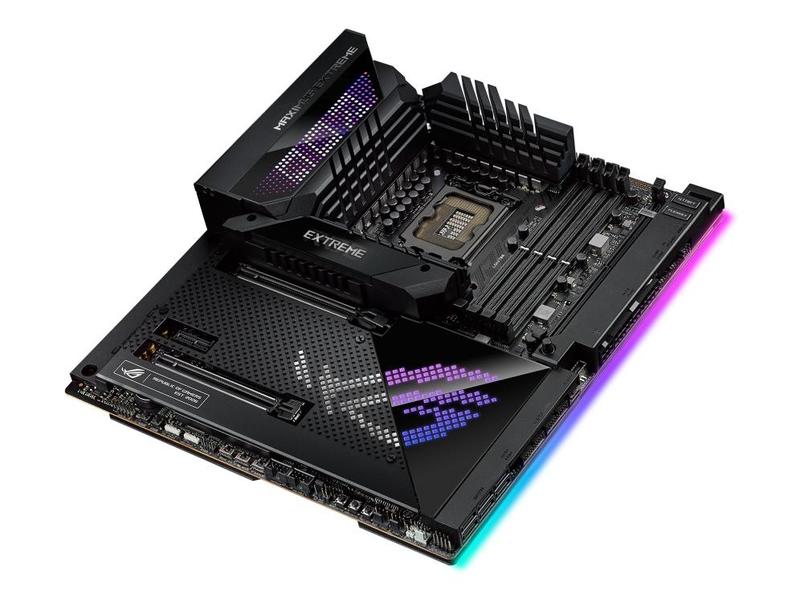

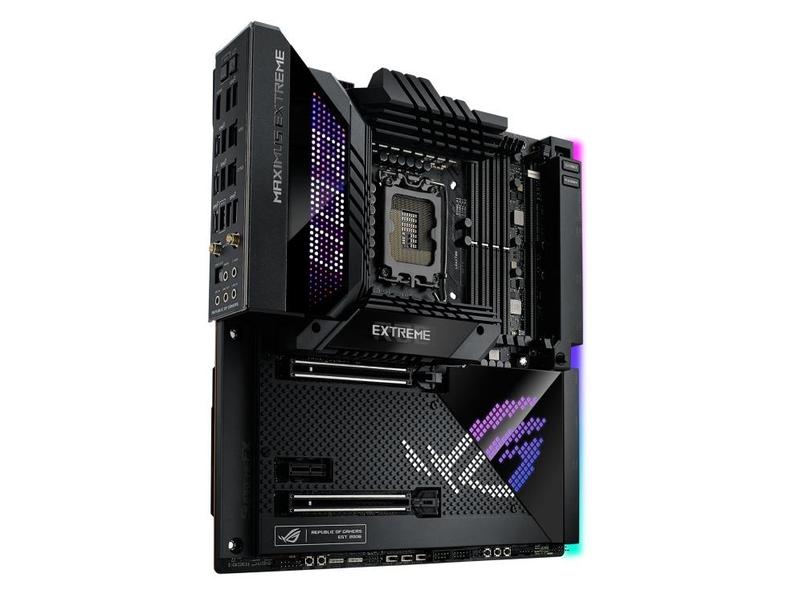

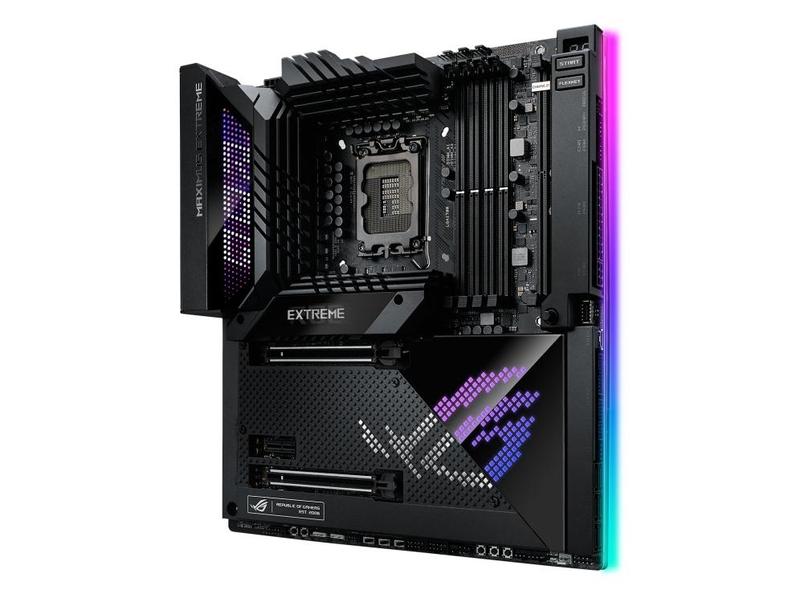

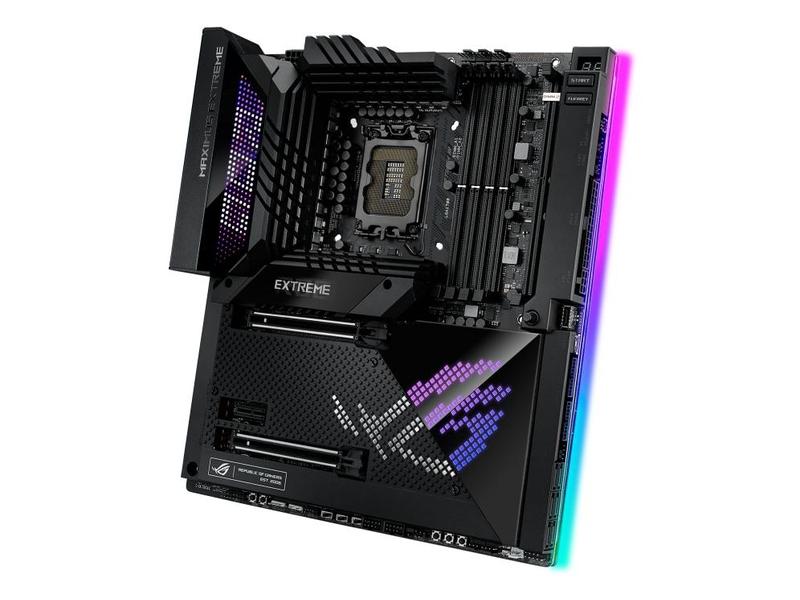

Základní deska ASUS ROG MAXIMUS Z690 EXTREME

Chipset: Z690

Rozměrový formát: EATX (30.5 x 27.7 cm)
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: Intel Socket LGA1700

Pozice na paměti: 4 x DIMM
Podpora pro paměti:

• DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory

Max.velikost operační paměti: 128GB
Podpora pro paměti typu:

• DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem III

Grafická karta:

• 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs

Zvuková karta:

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Síťová karta:

• 1 x Intel 2.5Gb Ethernet
• 1 x Marvell 10Gb Ethernet
• Intel Wi-Fi 6E

Rozšiřující sloty:
Intel 12th Gen Processors:

• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)

Intel Z690 Chipset:

• 1 x PCIe 3.0 x1 slot

RAID řadič: RAID 0/1/5, SATA RAID 0/1/5/10

SATA:

• 6 x SATA 6Gb/s ports

M.2:

• 5 x M.2 slots

USB:

• zadní USB porty ( celkem 10 )
• 1 x Thunderbolt 4 port (1 x USB Type-C)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
• přední USB porty ( celkem 10 )
• 1 x Thunderbolt 4 connector (1 x USB Type-C)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interní porty:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• 2 x 4-pin Radiator Fan headers
• 2 x W_PUMP+ headers
• 1 x WB_SENSOR header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 1 x 6-pin PCIe Graphics Card connector
• 3 x M.2 slots (Key M)
• 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• 1 x Intel Thunderbolt 4 port (USB Type-C)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
• 1 x Addressable Gen 2 header
• 1 x AURA RGB header
• 1 x BIOS Switch button
• 2 x BCLK button
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x LN2 Mode jumper
• 1 x Osc sence header
• 12 x ProbeIt Measurement Points
• 1 x ReTry button
• 1 x RSVD switch
• 1 x RSVD header
• 1 x Safe Boot button
• 1 x Slow Mode switch
• 1 x Start button
• 1 x V_Latch switch
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

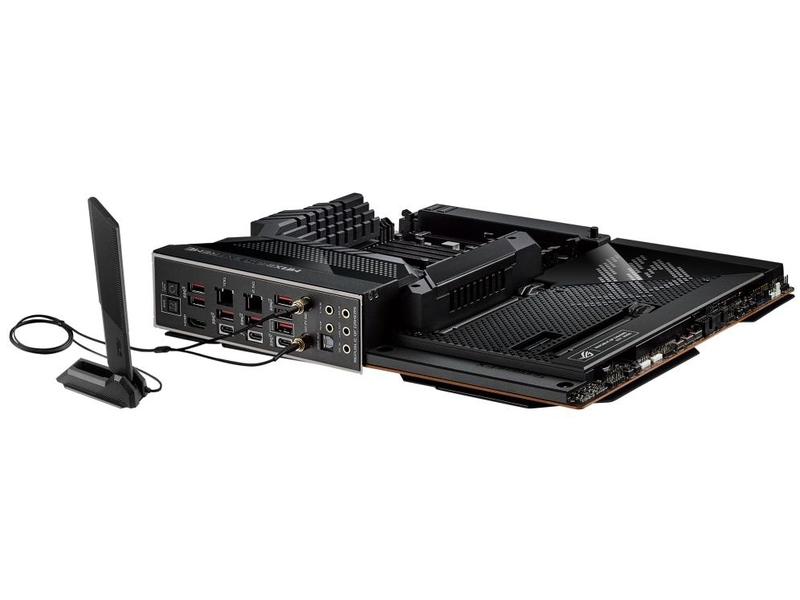

Externí porty:

• 1 x Thunderbolt 4 USB Type-C port
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
• 1 x HDMI port
• 1 x ASUS Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet port
• 1 x Marvell AQtion 10Gb Ethernet port
• 5 x LED-illuminated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z690-extreme-model/spec
