Chipset: Intel Z690 Chipset
Rozměrový formát: ATX (30.5 cm x 24.4 cm)
Podpora
pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron
processors
Patice procesoru: LGA1700
Pozice na paměti: 4x DDR5 memory slots, Dual Controller
Dual-Channel
Podpora pro paměti: 6400(OC)/ 6200(OC)/
6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/
5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max.velikost operační
paměti: 128 GB
Podpora pro paměti typu: XMP 3.0
Grafická karta: (na základě procesoru)
-
1x HDMI 2.1
-
1x DisplayPort 1.4
Zvuková karta: Realtek ALC4080 Codec
-
7.1-Channel High Definition Audio
-
Podpora S/PDIF output
Síťová karta:
-
1x Intel I225V 2.5Gbps LAN controller
-
Intel Wi-Fi 6E - 802.11 a/ b/ g/ n/ ac/ ax
-
Bluetooth 5.2
Rozšiřující sloty:
-
3x PCIe x16 slots
-
1x PCIe 3.0 x1 slot
RAID řadič:
-
RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-
RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
SATA: 6x SATA 6Gb/s ports
M.2: 4x M.2 slots
USB:
-
Interní:
-
1x USB 3.2 Gen 2 10Gbps Type-C port
-
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen
1 5Gbps ports)
-
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
-
Externí:
-
2x USB 2.0 Port
-
3x USB 3.2 Gen 2 10Gbps Type-A
-
2x USB 3.2 Gen 1 5Gbps Type-A
-
1x USB 3.2 Gen 2x2 20Gbps Type-C
Interní porty:
-
1x 24-pin ATX main power connector
-
2x 8-pin ATX 12V power connectors
-
6x SATA 6Gb/s connectors
-
4x M.2 slots (M-Key)
-
1x USB 3.2 Gen 2 10Gbps Type-C port
-
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen
1 5Gbps ports)
-
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
-
1x 4-pin CPU fan connector
-
1x 4-pin water-pump fan connector
-
6x 4-pin system fan connectors
-
1x Front panel audio connector
-
2x System panel connectors
-
1x Chassis Intrusion connector
-
1x TPM module connector
-
1x Clear CMOS jumper
-
1x TBT connector (supports RTD3)
-
1x Tuning Controller connector

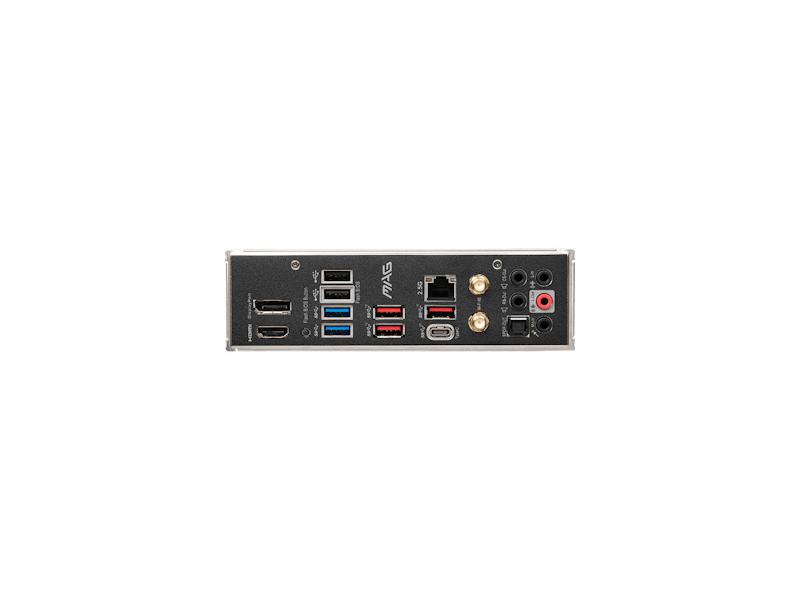

Externí porty:
-
1x DisplayPort 1.4
-
1x HDMI 2.1 Port
-
2x USB 2.0 Port
-
3x USB 3.2 Gen 2 10Gbps Type-A
-
2x USB 3.2 Gen 1 5Gbps Type-A
-
1x USB 3.2 Gen 2x2 20Gbps Type-C
-
1x 2.5G LAN Port
-
Wi-Fi / Bluetooth Antenna
-
HD Audio Connectors
-
Flash BIOS Button
-
1x Optical S/PDIF OUT
BIOS: AMI BIOS 7D32vH1
Stránka výrobce: http://www.msi.com/Motherboard/MAG-Z690-TOMAHAWK-WIFI/Overview
