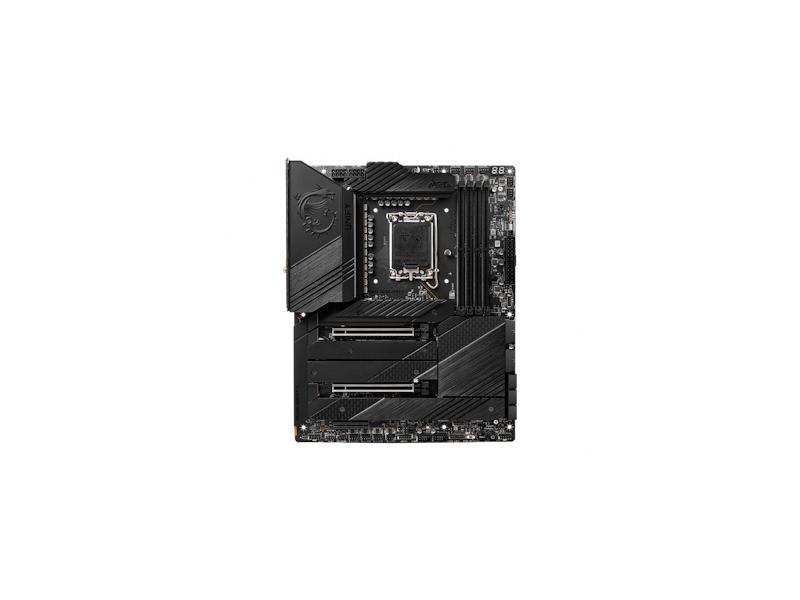

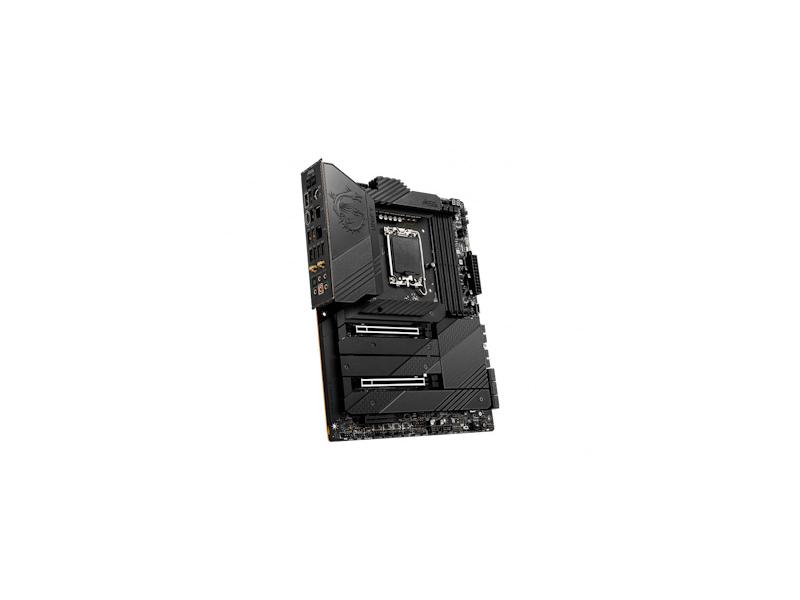

Chipset: Intel Z690 Chipset
Rozměrový formát: ATX (30.5 cm x 24.4 cm)
Podpora
pro procesory: 12th Gen Intel Core Processors, Pentium Gold and
Celeron Processors
Patice procesoru: LGA1700
Pozice na paměti: 4x DDR5 memory slots, Dual Controller
Dual-Channel
Podpora pro paměti: 6666(OC)/ 6600(OC)/
6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max.velikost
operační paměti: 128 GB
Podpora pro paměti
typu: XMP 3.0
Zvuková karta: Realtek ALC4080 Codec
-
7.1-Channel High Definition Audio
-
Podpora S/PDIF output
Síťová karta:
-
2x Intel I225-V 2.5Gbps LAN controllers
-
Intel Wi-Fi 6E - 802.11 a/ b/ g/ n/ ac/ ax
-
Bluetooth 5.2
Rozšiřující sloty:
-
2x PCIe x16 slots
-
1x PCIe x4 slot
RAID řadič:
-
RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-
RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
SATA: 6x SATA 6Gb/s ports
M.2: 5x M.2 slots
USB:
-
Interní:
-
1x USB 3.2 Gen 2x2 20Gbps Type-C port
-
2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen
1 5Gbps ports)
-
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
-
Externí:
-
2x USB 2.0
-
7x USB 3.2 Gen 2 10Gbps (Type-A)
-
1x USB 3.2 Gen 2x2 20Gbps (Type-C)
Interní porty:
-
1x 24-pin ATX main power connector
-
2x 8-pin ATX 12V power connectors
-
6x SATA 6Gb/s connectors
-
5x M.2 slots (M-Key)
-
1x USB 3.2 Gen 2x2 20Gbps Type-C port
-
2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen
1 5Gbps ports)
-
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
-
1x 4-pin CPU fan connector
-
1x 4-pin water-pump fan connector
-
6x 4-pin system fan connectors
-
1x Front panel audio connector
-
2x System panel connectors
-
1x Chassis Intrusion connector
-
2x 2-pin Thermal Sensors connector
-
1x Water flow connector
-
1x V-check point
-
1x TPM module connector
-
1x Tuning controller connector
-
1x Debug port connector
-
1x TBT connector (Supports RTD3)

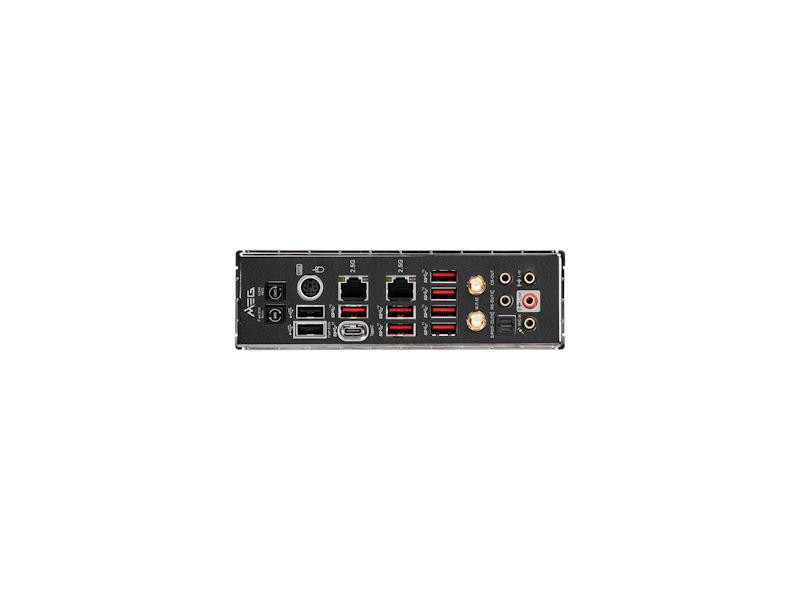

Externí porty:
-
Clear CMOS Button
-
PS/2 Keyboard / Mouse Port
-
2x 2.5G LAN
-
2x USB 2.0
-
7x USB 3.2 Gen 2 10Gbps (Type-A)
-
1x USB 3.2 Gen 2x2 20Gbps (Type-C)
-
1x Optical S/PDIF-Out
-
Wi-Fi / Bluetooth
-
HD Audio Connectors
-
Flash BIOS Button
BIOS: AMI BIOS 7D28v11
Stránka výrobce: http://www.msi.com/Motherboard/MEG-Z690-UNIFY/Overview
